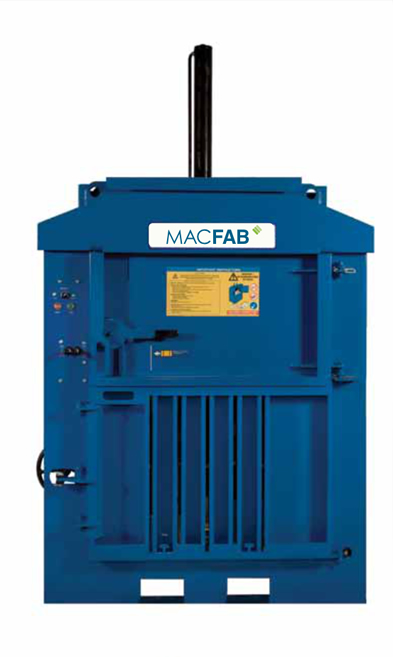

MACFAB 150

Category:

Description

Baler Features

  • Bale weight output 150 KG
  • A mid range baler with easy loading for large size cardboard boxes.
  • Retaining claws to reduce spring back of material in the baler chamber.
  • Fully automatic bale ejector: simplifies removal of the bale.

Optional Extras

  • PLC panel with automatic compaction cycle and bale full light.
  • Available in either 110/380/400 volts power supply.
  • Galvanised finish.
  • Sliding top door for easy loading of material.

Specifications

BALER DIMENSIONS BALE DIMENSIONS
Height: 2.630 m Height: 1.000 m
Width: 1.560m Width: 0.975 m
Depth: 1.030 m Depth: 0.800 m
Weight: 780 kg Weight: 150 kg (depending on material used)
Transportation Ht: 1.955 m Cycle Times: 40 seconds
Power Supply: 220 – 240 Volt 1 phase LOADING APERTURE SIZES
Motor: 2.2 kW 16 Amp Height: 0.470 m
Pressing Force: up to 8.0 Ton Width: 0.975 m
Noise Level: 74 decibels Depth: 0.800 m
