MACFAB 550

Category:

Description

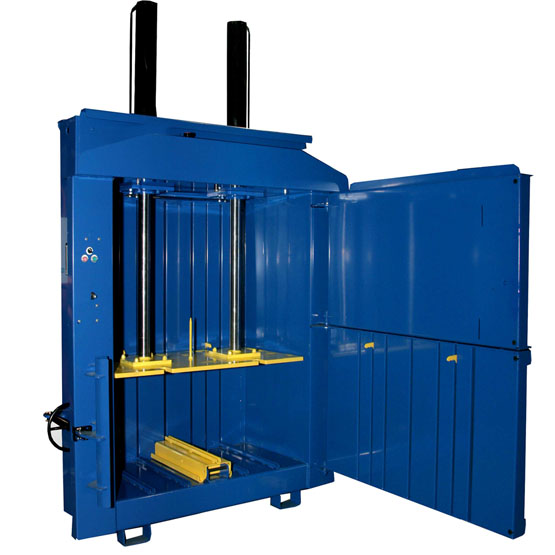

Baler Features

  • Produces a mill size bale.
  • Ideal for medium to large amounts of recyclable material.
  • Retainer claws to prevent spring back of material in the bale chamber.
  • Fully automated bale ejector, simplifies the removal of the bale.
  • Five wire tying for a more secure bale.

Optional Extras

  • Available with either 220-240 volts power supply.
  • Sliding top door for easy loading for material
  • PLC panel with automatic compaction cycles and bale full light.
  • Low noise pump 64 db

Specifications

BALER DIMENSIONS BALE DIMENSIONS
Height: 3.217 m Height: 1.200 m
Width: 2.115m Width: 1.500 m
Depth: 1.200 m Depth: 0.769 m
Weight: 1650 kg Weight: 550 kg (depending on material used)
Transportation Ht: 2.5 m Cycle Times: 40 seconds
Power Supply: 380 – 400 Volt 3 phase LOADING APERTURE SIZES
Motor: 11 kW 32 Amp Height: 0.880m
Pressing Force: up to 50 Ton Depth: 0.769 m
Noise Level: 74 decibels Width: 1.5 m
